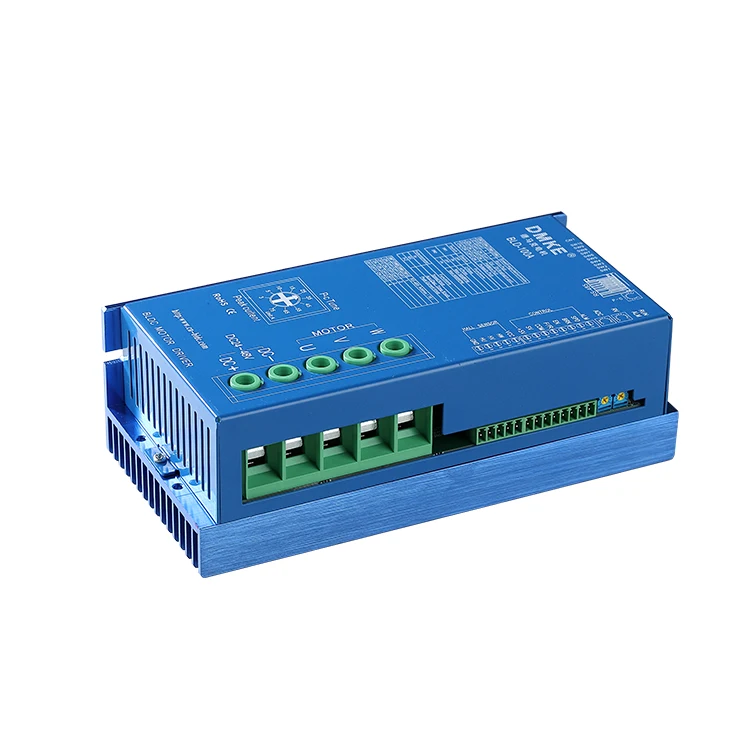

Factory supply custom 24V 48V 36v 100A 3000rpm brushless motor controller

FOB Reference Price:Get Latest Price
$100.00 - $186.00 / Piece | 1 Piece/Pieces (Min. Order)
Motor Type:
brushless motor controller
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
DMKE
Model Number:
BLD-100A
Input voltage range:
12V-60v
Rated Current:
50A
Max.current:
75A
Speed Control Range:
150-5000rpm
Hall Single Voltage:
5v
Port:
GUANGZHOU
Sample delivery time:
1-3 days
Bulk delivery time:
5-10 days
MOQ:
1 pcs
Key words:
brushless motor controller
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs brushless motor controller for one carton
Port
GUANGZHOU
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 To be negotiated
Video Description

Factory supply custom  24V 48V 36v 100A 3000rpm brushless motor controller



Product detail

Feature:

A. Support multiple speed adjustment modes for brushless motor controller
B. In order to improve the stability of speed, our driver has both open-loop and closed-loop control modes
C. this potentiometer can be used for adjusting acceleration and deceleration time directly.

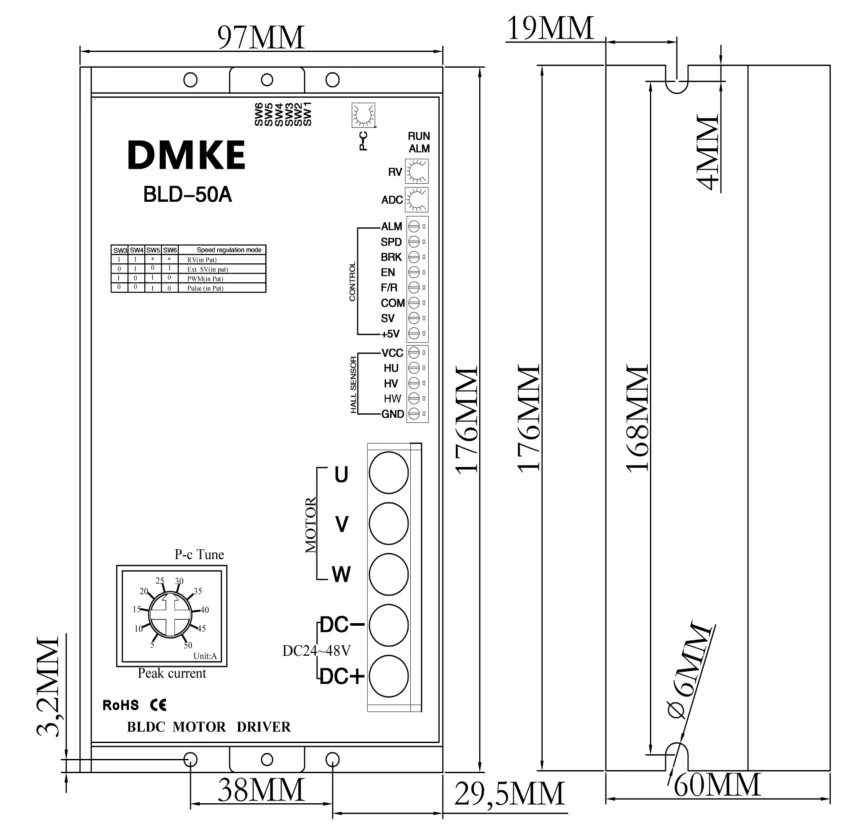

Mechanical Drawings:



Parameters Min ValueTypical ValueMax ValueUnit
Enviroment Temperature 0 60
Input voltage (DC)203660V
Output Current (A)575100A
Speed Control Range 150300050000rpm
Hall Single Voltage 4.555.5V
External potentiometrer  10K

Ω

View More Related Driver.

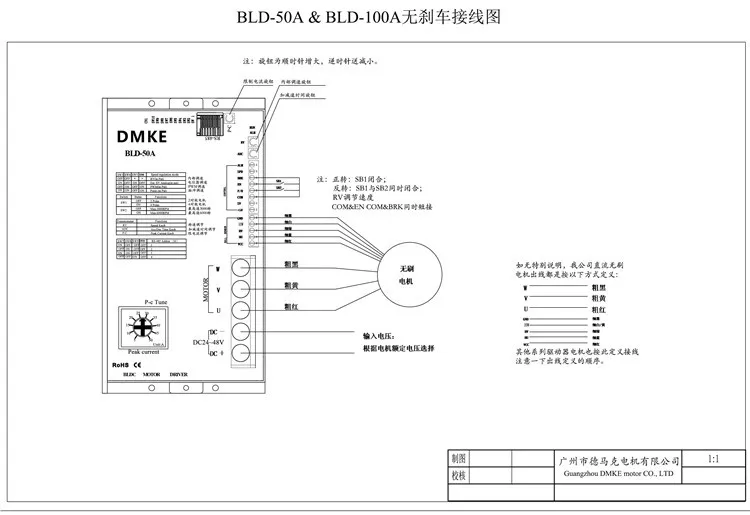

MarkSingle Category Definition
DC+Power connectionPower supply positive electrode(18V-48V)
DC-Power supply negative electrode
Motor connection Motor line W phase
Motor line V  phase
UMotor line U  phase
GND Hall Single BLDC Hall single power negative electrode
HW Hall senor single HW
HV Hall senor single HV
HU Hall senor single HU
VCC BLDC Hall single power positive electrode
SVControl single

External Potentiometer ( No Connection When Adjusting  Speed With Internal

Potentiometer ) or Pulse Rate In  Note(a)

COMCommon (Low Level/Ground)
F/RDirection:  Low Level/CCW High Level or No Connection/CW   Note (b)
ENEnable:  High Level/Stop  Low Level/Run   Note (b)
BRKQuick Brake:  High Level/Stop  Low Level/Run
Note (b)
SPEEDOutput single Speed Signal Output
ALARMAlarm Signal Output

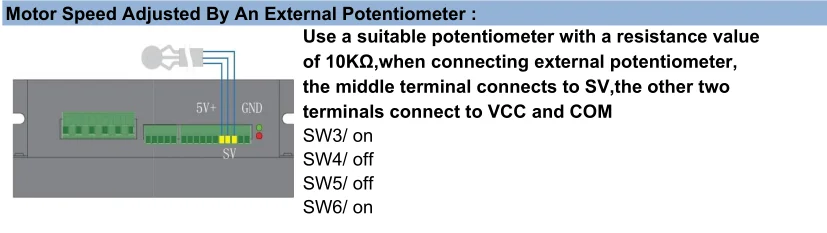

Note(a): Potentiometer/10KΩ or analog signal DC 0V~+5V (Change internal switch J1/DC0-10V).Turn off the internal potentiometer  RV when using an external potentiometer to adjust the motor speed.
Note(b):High level/5V (5mA)



We are factory direct for sale. OEM/ODM is available. Above are only some typical models. For more information or customized. Please contact us.
